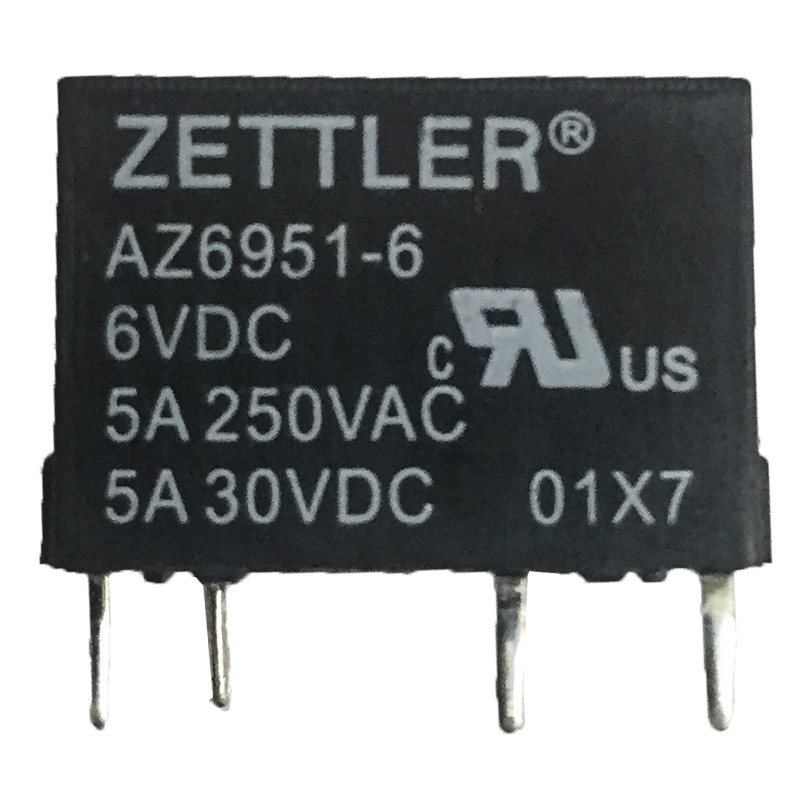

Relè 6VDC - AZ6951-6 - 5A 250VAC - ZETTLER

Arrangement

SPST- N.O. (1 Form A)

Ratings

Resistive load:

Max. switched power:  150W or 1250VA

Max. switched current: 5A

UL Ratings

Max. switched voltage: 30VDC or 250VAC

5A at 30VDC resistive

5A at 250VAC resistive

Material

Options:

Silver tin oxide

Silver tin oxide with gold plating

Resistance

< 100 milliohms initially

(6V, 1A, voltage drop method)

Power

At Pickup Voltage

100mW

(typical)

Max. Continuous

550mW at 20°C (68°F) ambient

Dissipation

420mW at 40°C (104°F) ambient

Temperature Rise

25°C (45°F) at nominal coil voltage

Temperature

Max. 105°C (221°F)

Life Expectancy

Minimum operations

Mechanical

20 million operations

Electrical

1 X 10⁵ at 5A, 30VDC or 250VAC Res.

Operate Time (typical)

6ms at nominal coil voltage

Release Time (typical)

3ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

750Vrms between open contacts

(at sea level for 1 min.)

3000Vrms contact to coil

Insulation

1000 megohms min. at 20°C, 500 VDC,

Resistance

50% RH

Dropout

Greater than 10% of nominal coil voltage

Ambient Temperature

At nominal coil voltage

Operating

-25°C (-30°F) to 70°C (158°F)

Storage

-40°C (-40°F) to 105°C (221°F)

Vibration

0.062" DA at 10–55 Hz

Shock

10 g

Enclosure

P.B.T. polyester

Terminals

Tinned copper alloy, P.C.

Max. Solder Temp.

270°C (518°F)

Max. Solder Time

5 seconds

Max. Solvent Temp.

80°C (176°F)

Max. Immersion Time

30 seconds

Weight

3 grams
