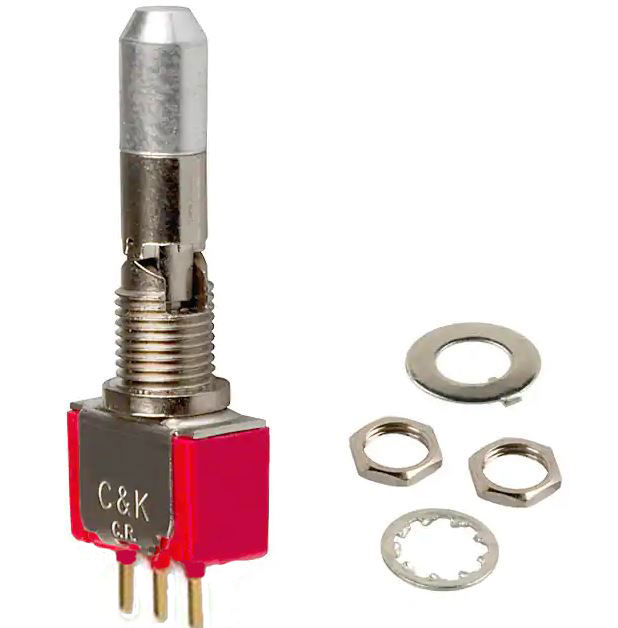

Interruttore commutatore 2 posizioni SPDT ON-(ON) 0.4A 7108 C&K
Accedi in modo che possiamo avvisarti di una risposta
Description
Interruttore commutatore 2 posizioni SPDT ON-(ON) 0.4A 7108 C&K
Caratteristiche
Manufacturer | C&K |
Modello | 7108 |
Type of switch | toggle |
Number of positions | 2 |
Contacts configuration | SPDT |
Switching method(the position in bracket indicates momentary position.) | ON-(ON) |
AC contacts rating @R(at resistive load) | 0.4A / 20V AC |
DC contacts rating @R(at resistive load) | 0.4A / 20V DC |
Leads | 4mm connectors |
Terminal pitch | 4.7mm |
Operating temperature | -30...85°C |
Max. contact resistance: | 10mΩ |
Body dimensions | 12.7x6.86x8.89mm |
Electrical life | 100000 cycles |
Min. insulation resistance | 10MΩ |
Application | telecommunication |
Mounting | THT |
Lever length | 10.67mm |
Manufacturer series | 7000 |
Contact resistance | 10mΩ |
Indexed positions | 25° |
Stable positions number | 1 |
